CNC milling services · Custom CNC milled parts
Parts off the mill
Every part on this page came off one of the four CNC machining centers in our Grand Prairie shop. Billet aluminum, finish-machined castings, copper, and steel all run through the same CNC milling services. As a result, a prototype quantity and a production release get the same programming, whether the customer is in Dallas, Texas or across the country.
Have a machined part?
Send the model with your quantity, material, and the tolerances that have to hold. Then we will tell you what it takes to run it.
Machining centers
4
Work envelope
To 50" x 26" x 25"
Spindle
12,000 RPM
Axes
3-axis, rotary for 4-axis
Billet aluminum
Custom CNC milled parts from solid
We cut these from aluminum bar and plate on 12,000 RPM spindles inside a tightly controlled work envelope. Because aluminum moves fast on the machine, a part milled from solid often costs less than the welded assembly it replaces. In fact, most of the custom CNC milled parts we quote start here.

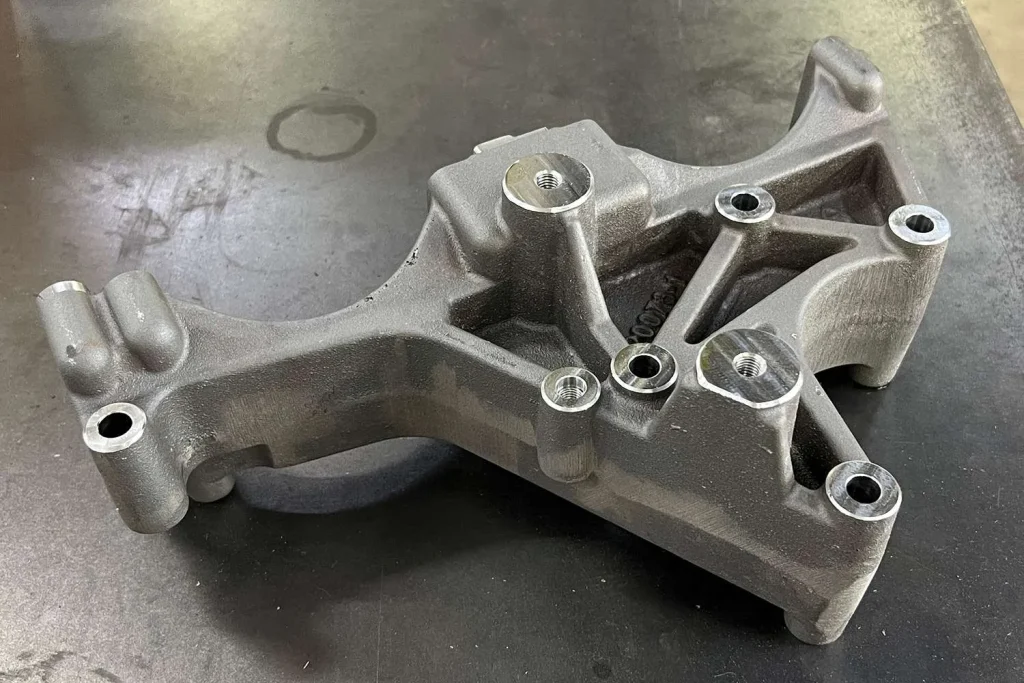

Castings
Finish machining aluminum castings
Castings are their own problem. First, stock varies part to part. Second, datums have to come off an as-cast surface. Above all, fixturing carries more of the risk than the cutting does. So if you have a foundry and need someone to take the casting the rest of the way, this is routine work for our CNC milling services.

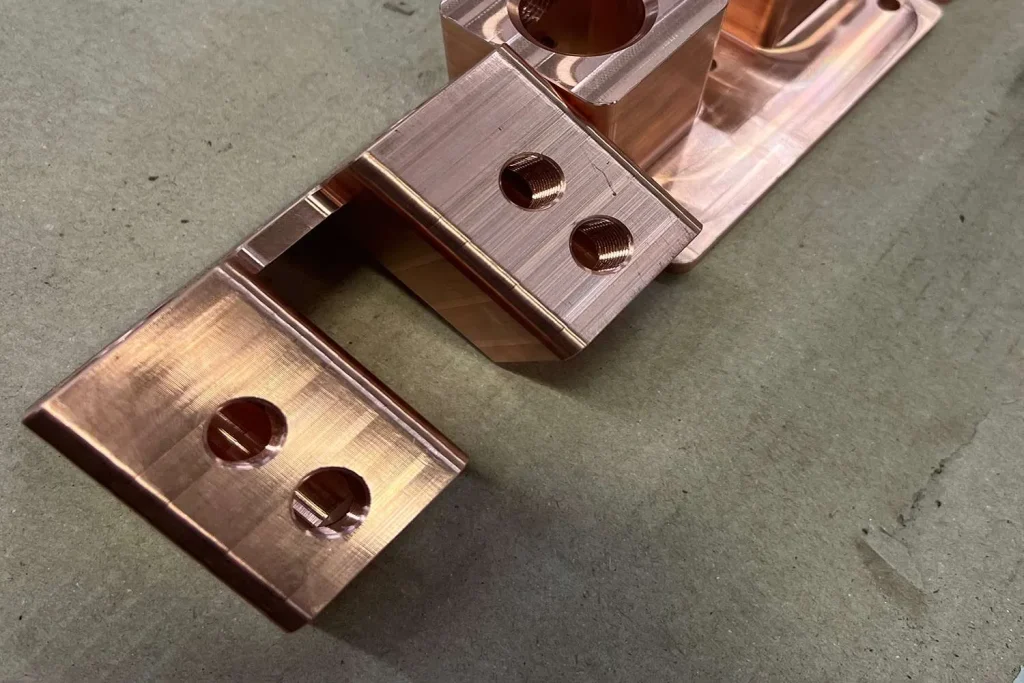

Copper and steel
Beyond aluminum
Copper is gummy and pushes back against tooling in ways aluminum does not. Likewise, steel asks for different speeds and feeds again. Still, the mills run steel, stainless, titanium, copper, brass, and aluminum, so material choice does not have to drive vendor choice.
About this work
CNC milling services are rarely the whole job
A machined part often starts on the laser or the saw and finishes at assembly. Because all of it runs in one building, the part does not get requoted or re-fixtured every time it changes process. Equally, the same inspection follows it from the first cut to the last.
Consistent output is a function of the machine holding accuracy across a run, not of a good first article. In short, that is what the CNC controls and the programming behind them are for. For a closer look at the equipment, the service page below covers spindles, envelopes, and materials in more detail. Meanwhile, the other galleries show what the same building does on the router and at assembly.
Send us your next print
Upload a STEP file or dimensioned drawing with your quantity and material. Then price and lead time come back with the processes we plan to run. Finally, custom CNC milled parts ship from Grand Prairie to anywhere in the country.
